Overview
Quick Details
Temperature:
+5~-40C
Power(W):
As per requirements
Dimension(L*W*H):
As per your requirements
Warranty:
1~10 years
After-sales Service Provided:
Video technical support, Online support, Engineers available to service machinery overseas
Applicable Industries:
Hotels, Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Cryo Systems
Voltage:
220V, 380V
Weight:
Depends
Certification:
CE,CCC
Controller:
Dixell
Condensing unit:
Copeland, Bitzer
Air cooler:
Up to 4 fans
Refrigerant:
R22, R404A
Volume:
from 2 to 300 cubit meters
Size:
Any size is ok
MOQ:
1 set
Panel:
150 mm PU panels
Brand:
Cryo Systems
Supply Ability
Supply Ability:
300 Set/Sets per Day
Packaging & Delivery
Packaging Details
Plywood packing, 100% safe.
Port
Shanghai port or Guangzhou port
Product Description

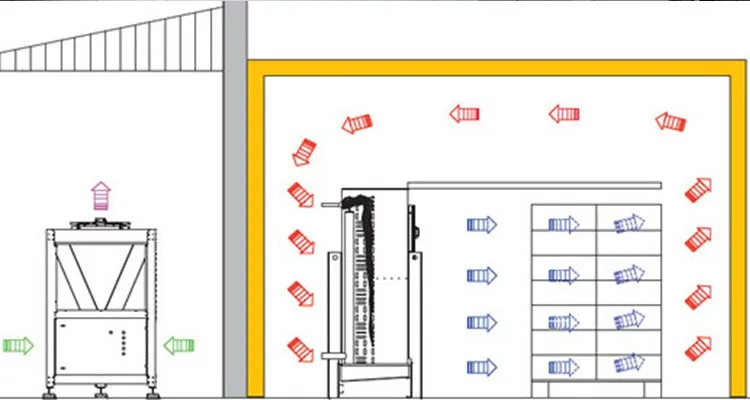

Air blast freezer is for fresh meat, seafood, chicken, etc. It is equipped with 200mm PU panel, using cooling machines to cool down to -35C within 4-6 hours.




From fresh to frozen, only 4~6 hours

To keep meat in good quality, they have to get frozen in 4~6 hours, even shorter.



Powerful cooling machines

Normally we use Bitzer two stages compressor or screw compressor. Air cooled condenser or water cooled condenser are optional.

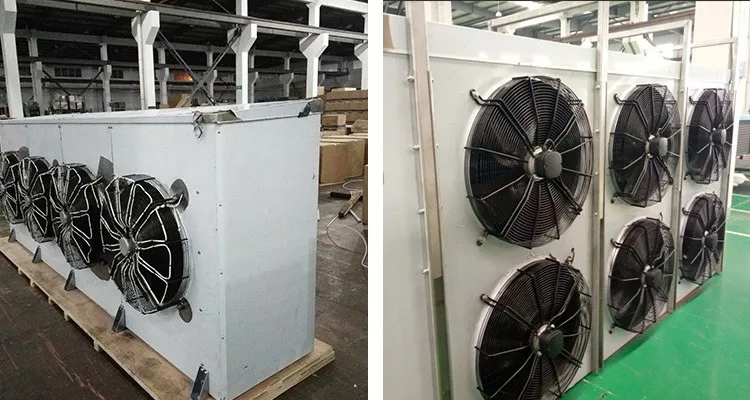

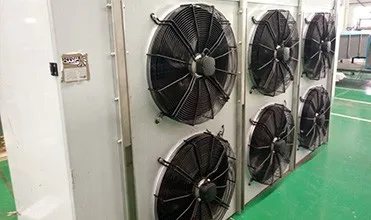

Vertical type blast evaporator

Big fin space design, powerful air flow. Stainless steel box casing.

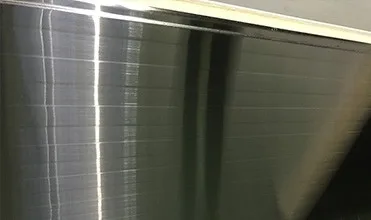

SUS304 PU panels, corrosion-free

To anti-corrosion due to volatile gas from medicine will make the color plate easy to rust. We choose stainless steel 304, food grade, and better anti-corrosion. Some supplier may use stainless steel 430, 210, weak material, easy to be rust.

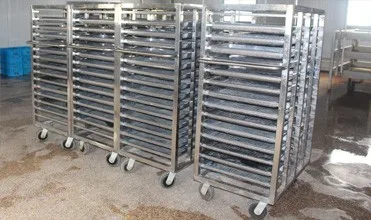

SUS 304 robust hand trolley with four big castors

So we can freeze the fresh meat by batches.

Panels
thickness
Temperature
difference inside
and outside cold
room
Suitable
temperature for
cold room
75mm
40℃
-5~25℃
100mm
50℃
-15~25℃
150mm
70℃
-25~25℃
180mm
80℃
-35~25℃
200mm
90℃
-50~25℃

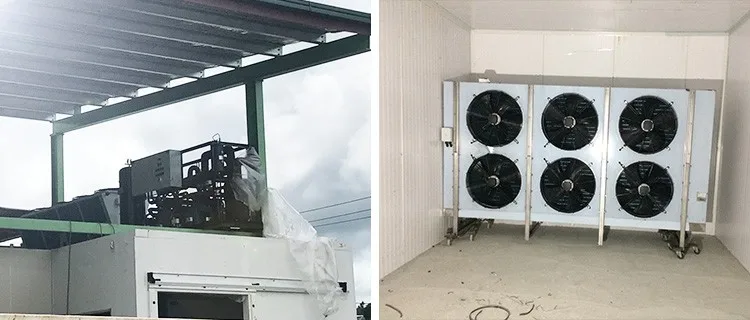

Successful case

Blast freezer for chicken

Customer info: This project is for slaughterhouse and processing plant. Freezing quantity is 10 tons per day. Room temperature -30~-40C.
Order info:
2x30HP Bitzer reciprocating two stages compressor rack, evaporative condenser,
Floor mounted blast evaporator, SUS304 cabinet
200mm PU panels with 0.8mm color plate

FAQ

Why we choose such big compressor horsepower?

Fresh food has a lot of heat and need the big compressor horsepower to cool down within 4-6 hours.

Why the temperature is so low?

Fresh food need to reach -20C within 4-6 hours so that need -35C or -40C cold room temperature.

Why does the blast cold room need to use the vertical air cooler?

The vertical air cooler have big fin spacing, big air flow and very easy to install.

Can the blast freezer cooling time be shorter?

4-6 hours is fast enough and very economical. 2-3 hours will need even bigger horsepower compressor and more expensive.

Are there standard compressor model for blast freezer?

No. Our technicians need choose the compressor horse according to the cooling time, Products inlet/outlet temperature, how many tons per batch, and ambient temperature, etc.

Why other supplier's price lower than us?

We can ensure the fresh food cool down at -20C within 4-6 hours that need to use the big horsepower compressor. What's more, the compressor we use original new German brand Bitzer which have a good quality and keep more than 20 years lifetime.

Do you have Bitzer compressor imported from Germany?

NO. Now we purchase Bitzer compressor from Bitzer Beijing factory, China. It supply compressor for whole Asian market

Factory Introduction

We' re the only one manufacturer in China who has two continuous PIR automated lines, one from German, the other from Italy. Annual output up to 2,800,000 sqm panel, 10,000 units cold room doors. We can ensure our panels lifetime 20 years at least.
Our factory can design and produce all kinds of condensing unit, compressor rack, condenser, evaporator, etc. All these years, we're agent of Bitzer compressor and Danfoss, better price, shorter production time, less quality troubles.

Package

For refrigeration unit

95% of the units are with standard plywood package. XQ series condensing unit, small evaporator and condensers are with carton package. Can be updated to plywood.

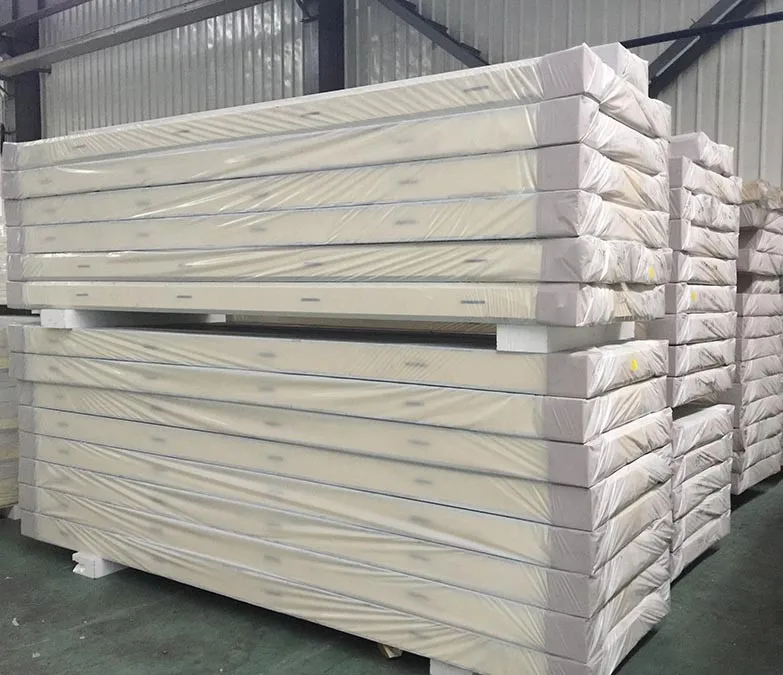

For PU panel

Each panel is well wrapped with plastic film respectively, For container shipping, dozen pieces is packed on one pallet. Very easy for container loading and unload. For LCL delivery, package can be updated to plywood package for better protection.
